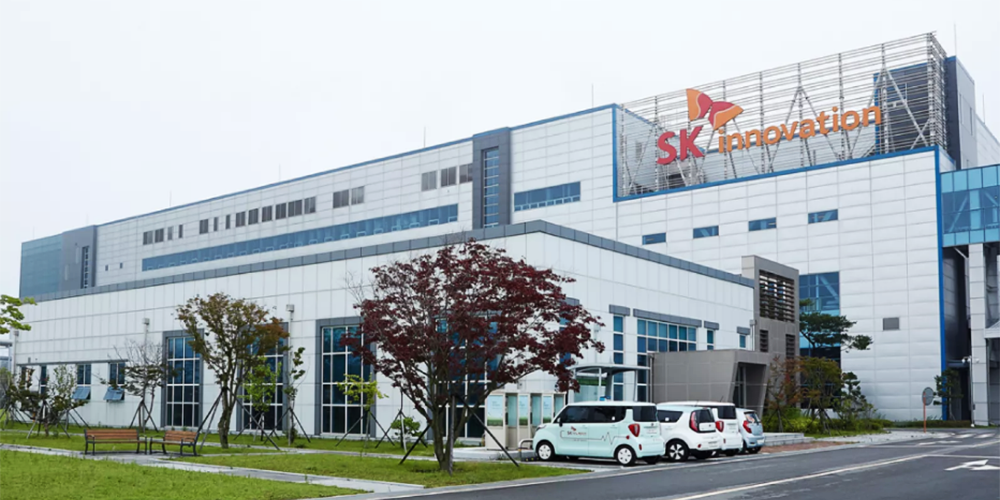

SK New Energy
SK New Energy (Jiangsu) Co., LTD. (SK on (Jiangsu) hereinafter referred to as OJ) was invested and established in Yancheng in June 2019 by the World's top 500 enterprises SK Group of South Korea. .SK Group is the third largest multinational company in South Korea, ranked 73rd among the world's top 500 companies, and has a very mature battery production technology.
In order to better protect the personal and property safety of enterprises, and to have enough deterrence for lawbreakers who want to invade; At the same time, considering that some employees who are not strong in self-control may covitate the property of the enterprise or climb the perimeter wall, the perimeter prevention system of the enterprise should not only block the invasion externally, but also play the function of protecting the property of the enterprise internally, so selecting a suitable perimeter alarm system is crucial.
Tension electronic fence system adopts "first block, then alarm" which is the latest concept of international perimeter alarm system ,the purpose is to fundamentally prevent the occurrence of invasion and theft,it is a new type of perimeter alarm products. Tension electronic fence are installed on the perimeter in the form of dividing the defense area,it is a tangible barrier. Electronic fence system is the first line of defense, and is the most important line of defense. It is responsible for the safety and security of the perimeter. When someone illegally climbs over the wall or damages, the scene immediately sends an alarm signal, the detector can immediately transmit the alarm to the command center, the command center receives and processes the alarm signal.

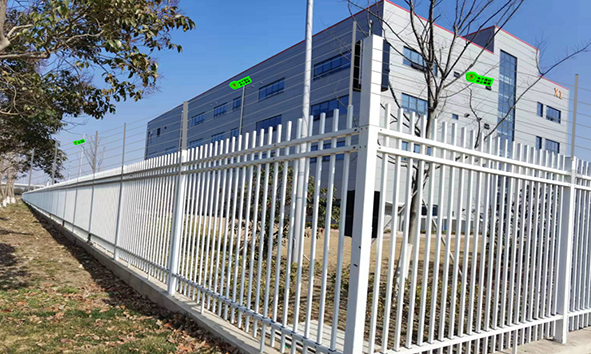

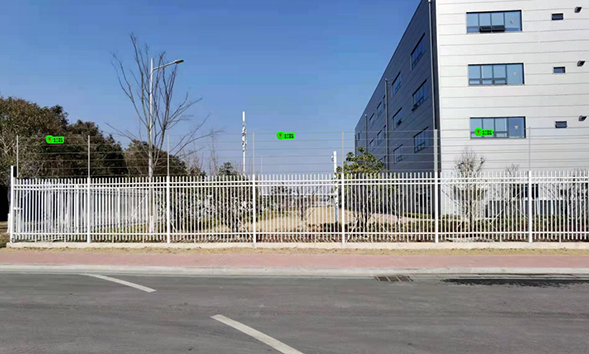

The vertical installation method: the tension electronic fence rod is installed parallel to the wrought iron fence, and the height of the electronic railing is 1.2m, which increases the height of the wall and effectively increases the difficulty of climbing and over.
The front end adopts 6-wire tension fence, the tension line spacing is about 18cm, effectively block the crossing of personnel and items. Set up a tension rod every 2 meters or so, and install it on the load-bearing rod of the wrought iron fence through a fixed base; Install 1 warning sign every 10 meters to act as a deterrent and warning. Form a perimeter alarm system without dead corners and full coverage.

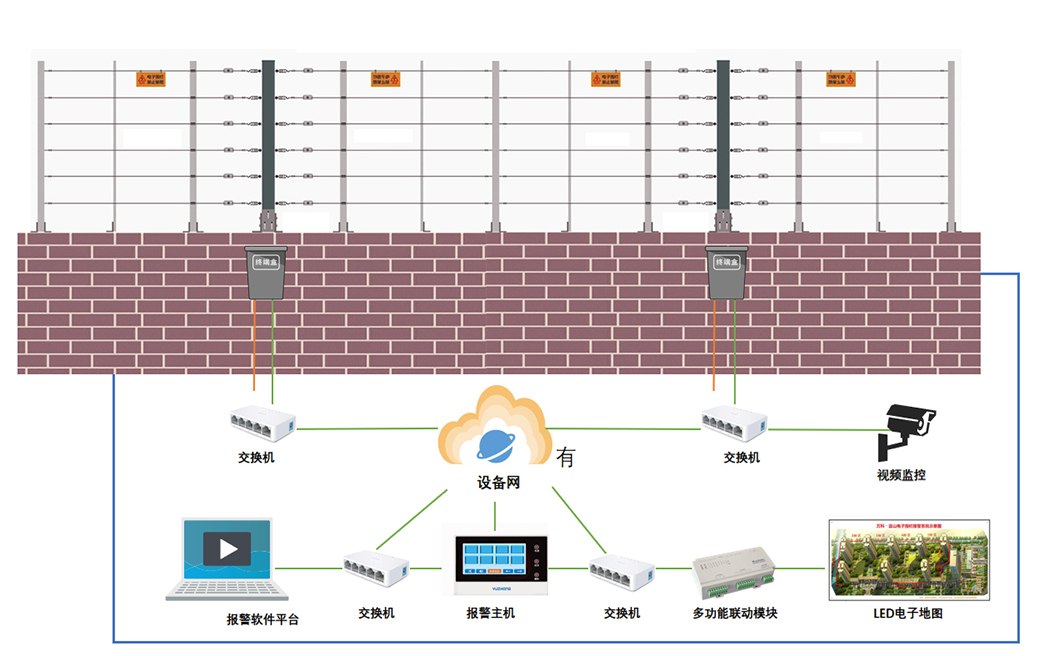

The system adopts network communication structure, the tension fence energizer and the video surveillance system are connected to the network transmission, the TCP/IP communication protocol is used.
（Communication Structure）
The tension fence energizer located in the front end and the alarm energizer in the control center are communicated in real time, and the computer room is configured with a wall-mounted electronic map, which is conducive to the accurate location of the alarm in the first time.
After the construction of SK New Energy tension electronic fence system, it has the following effect and system functions:
Physical barrier: The tension electronic fence system is a physical and tangible perimeter alarm system, which forms a physical barrier to intruders and items, increasing the difficulty of their invasion.
Deterrent function: There is a warning sign "Electronic fence, no climbing" hang on the front end of the electronic fence every 10 meters to warn would-be intruders, so that intruders have psychological fear and eliminate invasion behavior.
Alarm function: When the intruder insists on climbing or forcing over the perimeter tension fence, the pressure value of the tension alloy line will change, then trigger the alarm. The sound and light alarm device installed in the scene boundary will emit sound and light, which can make the intruder have psychological deterrent, and remind the accurate alarm location to the patrol personnel on duty around; On the other hand, the control keyboard or control computer of the alarm center will immediately issue an alarm sound and prompt the area number of the scene police; The electronic map accurately shows the location of the alarm defense area, so that the personnel on duty can deal with the alarm situation.
Video linkage function: tension electronic fence system and video have linkage in real-time. When the defense area alarms, the alarm defense area screen will pop up in real time, which is conducive to the security personnel to grasp the facts of the scene in the first time. The location and time of the alarm will be recorded by computer software or control equipment and stored for long-term, use for future reference.
